Page 287 Land Cruiser 40 Series Suspension

<<< >>> 40 Series 45 & 55 Series 60 & 62 Series 70 & 75 Series 80 Series FJ Cruiser U-Bolts, Caster Shims, Centering Pins, Spring Perches, Bump Stops
40 Series Aftermarket Suspension

40 Series 2 Inch Lift Kit

SOR FJ40 2 Inch Lift Kit
SOR Photo
SOR Photo
SOR Photo SOR Photo
(click for large picture)
Specter offers a Lift Kit for those customers who want new springs for their 40 Series, but do not want the great deal of added lift that our 4 Inch Lift Kit offers. This 2 Inch Lift Kit is a great way to eliminate your worn out stock suspension.

Each kit includes the following items:
SOR Heavy Duty Leaf Springs - Quantity 4 - These multi tapered leaf springs are manufactured using the highest quality 5160H alloy spring steel. SOR's Front Heavy Duty Leaf Springs have six multi tapered leafs per stack. The Rear Heavy Duty Leaf Springs have five multi tapered leafs per stack to provide a soft, flexible suspension, built to exacting tolerances.

Explorer Pro-Comp Extended Shocks - Quantity 4 - Explorer Pro-Comp Shock Absorbers are a 10-stage, velocity sensitive valving that delivers a superior highway ride, maximum performance, and control off-road. Expanded fluid reservoir and twin tube construction increases fluid capacity up to 50%. This, combined with Pro-Comp's exclusive fluid, allows the Pro-Comp Shock Absorbers to perform consistently in all climates even under the most extreme conditions, reduces shock temperature, and protects internal components. Shock boots should be ordered separately when you purchase a lift kit. These boots keep the dirt out of the shaft and away from the shaft seal which reduces the possibility of premature shaft seal failure, thus longer shock life. Shock boots come in your choice of colors black, red, yellow, and blue.

Anti-Inversion Plated Tri-Shackles - Quantity 4 - These stock length shackles are case hardened with grease fittings, and use stock size bushings (included).

Graphite Impregnated Poly Bushings - Quantity 24

U-Bolts With Washers & Nuts - Quantity 8

Kit does not include shock boots. Click for boots, available in Black, Blue, Red or Yellow.
High Quality SOR Heavy Duty Leaf Springs
SOR Heavy Duty Leaf Springs are made from High Quality NEW North American Steel. SOR Heavy Duty Leaf Springs are made in North America by a leading spring manufacturer that supplies OEM spring components to auto manufacturers and military contractors world wide. These springs are not made from re-purposed steel in a foreign country. SOR springs are not average quality springs at a bargain prices. SOR springs are high quality springs so they cost more than other brand discount springs. Don't compromise on your suspension, chose High Quality SOR Heavy Duty Leaf Springs.

Buy
Quantity
Part Number
Description
Price
In Stock
Installation
Instructions
287-41A-KIT
40 SERIES 2 INCH SOR LIFT KIT-
2 inches of lift over stock height-Fits 1958-12/74 FJ40 & BJ40-Comes with S-O-R Heavy Duty Leaf Springs (qty 4), Explorer Pro-Comp Extended Shocks (qty 4), Anti-Inversion Black Plated Tri-Shackles (qty 4), Graphite Impregnated Poly Bushings (qty 24), and U-Bolt with washer & nut (qty 8)-Does NOT come with shock boots, see page 286. Cannot be shipped Parcel Post.
Club Price with 15% Discount is $ 1164.15 Click here for info about joining Club SOR
(an Additional Handling Charge of 60.00 is already included in price)
 WARNING: Cancer and Reproductive Harm — www.p65warnings.ca.gov
1359.00
287-41B-KIT
40 SERIES 2 INCH SOR LIFT KIT-
2 inches of lift over stock height-Fits 1/75-7/80 FJ40 & BJ40-Comes with S-O-R Heavy Duty Leaf Springs (qty 4), Explorer Pro-Comp Extended Shocks (qty 4), Anti-Inversion Zinc Plated Tri-Shackles (qty 4), Graphite Impregnated Poly Bushings (qty 24), and U-Bolt with washer & nut (qty 8)-Does NOT come with shock boots, see page 286. Cannot be shipped Parcel Post.
Club Price with 15% Discount is $ 1164.15 Click here for info about joining Club SOR
(an Additional Handling Charge of 60.00 is already included in price)
 WARNING: Cancer and Reproductive Harm — www.p65warnings.ca.gov
1359.00
287-41C-KIT
40 SERIES 2 INCH SOR LIFT KIT-
2 inches of lift over stock height-Fits 8/80-1984 FJ40 & BJ40-Comes with S-O-R Heavy Duty Leaf Springs (qty 4), Explorer Pro-Comp Extended Shocks (qty 4), Anti-Inversion Zinc Plated Tri-Shackles (qty 4), Graphite Impregnated Poly Bushings (qty 24), and U-Bolt with washer & nut (qty 8)-Does NOT come with shock boots, see page 286.Cannot be shipped Parcel Post.
Club Price with 15% Discount is $ 1109.75 Click here for info about joining Club SOR
(an Additional Handling Charge of 60.00 is already included in price)
 WARNING: Cancer and Reproductive Harm — www.p65warnings.ca.gov
1295.00

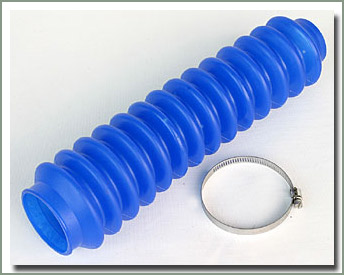

Shock Boots

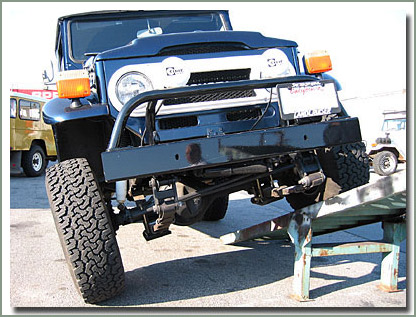

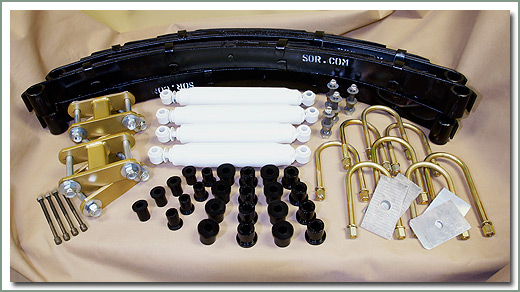

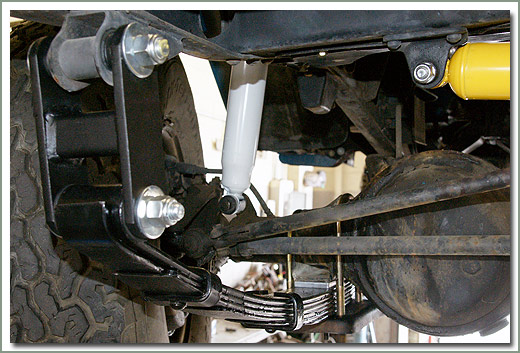

40 Series 4 Inch Lift Kit

SOR FJ40 4 Inch Lift Kit
SOR Photo SOR Photo
Kit parts vary by production period (click for large picture)

SOR Photo SOR Photo
SOR Photo SOR Photo
SOR Photo SOR Photo
(click for large picture)
If we told you that you could get an extra 4 inches with only one part number would you be interested? Sure you would! Specter Off-Road introduces one part number ordering for your 40 Series 4 Inch Lift Kits.

Each kit includes the following items:
4 SOR Heavy Duty Leaf Springs - These multi tapered leaf springs are manufactured using the highest quality 5160H alloy spring steel. SOR's Front Heavy Duty Leaf Springs have six multi tapered leafs per stack. The Rear Heavy Duty Leaf Springs have five multi tapered leafs per stack to provide a soft, flexible suspension, built to exacting tolerances.

4 Explorer Pro-Comp Extended Shocks - Explorer Pro-Comp Shock Absorbers are a 10-stage, velocity sensitive valving that delivers a superior highway ride, maximum performance, and control off-road. Expanded fluid reservoir and twin tube construction increases fluid capacity up to 50%. This, combined with Pro-Comp's exclusive fluid, allows the Pro-Comp Shock Absorbers to perform consistently in all climates even under the most extreme conditions, reduces shock temperature, and protects internal components. Shock boots should be ordered separately when you purchase a lift kit. These boots keep the dirt out of the shaft and away from the shaft seal which reduces the possibility of premature shaft seal failure, thus longer shock life. Shock boots come in your choice of colors black, red, yellow, and blue.

4 Performance Shackles - Extended length shackles (2 1/2 inches longer than stock) are made of 3/8 inch steel bar, with 5/8 inch diameter bolts.

24 Graphite Impregnated Poly Bushings

8 U-Bolts With Washers & Nuts

1 Pair 2.5 degree Spring Shims - REAR

1 Pair 4.0 degree Spring Shims - FRONT

4 Heavy Duty Leaf Pins

Kit does not include shock boots. Click for boots, available in Black, Blue, Red or Yellow.
High Quality SOR Heavy Duty Leaf Springs
SOR Heavy Duty Leaf Springs are made from High Quality NEW North American Steel. SOR Heavy Duty Leaf Springs are made in North America by a leading spring manufacturer that supplies OEM spring components to auto manufacturers and military contractors world wide. These springs are not made from re-purposed steel in a foreign country. SOR springs are not average quality springs at a bargain prices. SOR springs are high quality springs so they cost more than other brand discount springs. Don't compromise on your suspension, chose High Quality SOR Heavy Duty Leaf Springs.
Buy
Quantity
Part Number
Description
Price
*In Stock
287-40A-KIT
40 SERIES 4 INCH SOR LIFT KIT-**Special Order - NO Return
4 inches of lift over stock height-Fits 1958-12/74 FJ40 & BJ40-Comes with S-O-R Heavy Duty Leaf Springs (qty 4), Explorer Pro-Comp Extended Shocks (qty 4), Performance Shackles (qty 4), Graphite Impregnated Poly Bushings (qty 24), U-Bolts with washers & nuts (qty 8), 2.5 degree Spring Shims (qty 2), 4.0 degree Spring Shims (qty 2), and Leaf Spring Centering Pins (qty 4)-Does NOT come with shock boots, see page 286.Cannot be shipped Parcel Post.
Club Price with 15% Discount is $ 1164.15 Click here for info about joining Club SOR
Special Order - NO Return
(an Additional Handling Charge of 60.00 is already included in price)
 WARNING: Cancer and Reproductive Harm — www.p65warnings.ca.gov
1359.00
287-40B-KIT
40 SERIES 4 INCH SOR LIFT KIT-**Special Order - NO Return
4 inches of lift over stock height-Fits 1/75-7/80 FJ40 & BJ40-Comes with S-O-R Heavy Duty Leaf Springs (qty 4), Explorer Pro-Comp Extended Shocks (qty 4), Performance Shackles (qty 4), Graphite Impregnated Poly Bushings (qty 24), U-Bolts with washers & nuts (qty 8), 2.5 degree Spring Shims (qty 2), 4.0 degree Spring Shims (qty 2), and Leaf Spring Centering Pins (qty 4)-Does NOT come with shock boots, see page 286.Cannot be shipped Parcel Post.
Club Price with 15% Discount is $ 1164.15 Click here for info about joining Club SOR
Special Order - NO Return
(an Additional Handling Charge of 60.00 is already included in price)
 WARNING: Cancer and Reproductive Harm — www.p65warnings.ca.gov
1359.00
287-40C-KIT
40 SERIES 4 INCH SOR LIFT KIT-**Special Order - NO Return
4 inches of lift over stock height-Fits 8/80-1984 FJ40 & BJ40-Comes with S-O-R Heavy Duty Leaf Springs (qty 4), Explorer Pro-Comp Extended Shocks (qty 4), Performance Shackles (qty 4), Graphite Impregnated Poly Bushings (qty 24), U-Bolts with washers & nuts (qty 8), 2.5 degree Spring Shims (qty 2), 4.0 degree Spring Shims (qty 2), and Leaf Spring Centering Pins (qty 4)-Does NOT come with shock boots, see page 286.Cannot be shipped Parcel Post.
Club Price with 15% Discount is $ 1173.50 Click here for info about joining Club SOR
Special Order - NO Return
(an Additional Handling Charge of 60.00 is already included in price)
 WARNING: Cancer and Reproductive Harm — www.p65warnings.ca.gov
1370.00
Shock Boots

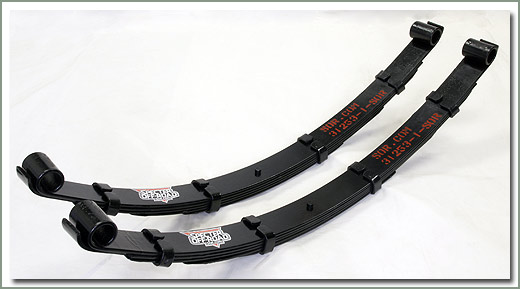

Heavy Duty Leaf Springs

SOR High Quality 40 Series Heavy Duty Leaf Springs
SOR Photo
Front Springs (click for large picture)
SOR Photo
Rear Springs (click for large picture)

SOR High Quality 40 Series Heavy Duty Leaf Springs are designed by Specter and built by the premier leaf spring manufacturer in North America. Specter's heavy duty springs provide a 2 inch - 2 1/2 inch of lift. These multi tapered leaf springs are manufactured using the highest quality 5160H alloy spring steel. Spring have large eyes using large diameter 1 3/8 inch bushings, and a large 3/8 inch center pin. SOR's Front Heavy Duty Leaf Springs have six multi tapered leafs per stack. SOR's Rear Heavy Duty Leaf Springs have five multi tapered leafs per stack to provide a soft, flexible suspension, built to exacting tolerances. Designed for the serious off-road enthusiast. Sold each.

Specter recommends the use of longer rear shackles for maximum wheel travel as not to bind the spring on the hanger, see page 288 for shackle options. Bushings are not included with springs, be sure to order separately see page 289 for bushing listings. See page 286 for extended shock and shock boot listings. Springs are sold each.


High Quality SOR Heavy Duty Leaf Springs
SOR Heavy Duty Leaf Springs are made from High Quality NEW North American Steel. SOR Heavy Duty Leaf Springs are made in North America by a leading spring manufacturer that supplies OEM spring components to auto manufacturers and military contractors world wide. These springs are not made from re-purposed steel in a foreign country. SOR springs are not average quality springs at a bargain prices. SOR springs are high quality springs so they cost more than other brand discount springs. Don't compromise on your suspension, chose High Quality SOR Heavy Duty Leaf Springs.
Buy
Quantity
Part Number
Description
Price
*In Stock
287-20A
FRONT SOR HEAVY DUTY LIFTED LEAF SPRING -
Fits 1961-7/80 FJ40, BJ40 & FJ45 Pick Up - 2 inches to 2 1/2 inches of lift over stock height - 6 multi tapered leafs per stack - Uses large 3/8 inch center pin - sold EACH - can NOT be shipped Parcel Post or Priority Mail
On Sale - Everyone gets the Discounted Price on this part.
(an Additional Handling Charge of 12.00 is already included in price)
 WARNING: Cancer and Reproductive Harm — www.p65warnings.ca.gov
212.00
287-20B
FRONT SOR HEAVY DUTY LEAF SPRING-
2 inches to 2 1/2 inches of lift over stock height-Fits 8/80-1984 FJ40, BJ40, FJ45 Pick Up & 47 Troopy-6 multi tapered leafs per stack-Uses large 3/8 inch center pin-Sold each.Cannot be shipped Parcel Post.
On Sale - Everyone gets the Discounted Price on this part.
(an Additional Handling Charge of 12.00 is already included in price)
 WARNING: Cancer and Reproductive Harm — www.p65warnings.ca.gov
212.00
287-30A
40 SERIES REAR SOR HEAVY DUTY LEAF SPRING-
2 inches to 2 1/2 inches of lift over stock height-Fits 1961-7/80 FJ40 & BJ40-5 multi tapered leafs per stack-Uses large 3/8 inch center pin-Sold each. Cannot be shipped Parcel Post.
On Sale - Everyone gets the Discounted Price on this part.
(an Additional Handling Charge of 12.00 is already included in price)
 WARNING: Cancer and Reproductive Harm — www.p65warnings.ca.gov
212.00
287-30B
40 SERIES REAR SOR HEAVY DUTY LEAF SPRING-
2 inches to 2 1/2 inches of lift over stock height-Fits 8/80-1984 FJ40 & BJ40-5 multi tapered leafs per stack-Uses large 3/8 inch center pin-Sold each. Cannot be shipped Parcel Post.
On Sale - Everyone gets the Discounted Price on this part.
(an Additional Handling Charge of 12.00 is already included in price)
 WARNING: Cancer and Reproductive Harm — www.p65warnings.ca.gov
212.00

U-Bolts, Caster Shims, Bump Stops etc.


40 Series U-Bolt Kit

This is a convenient and affordable U-bolt package for 1961-7/80 40 Series vehicles. This kit includes quantity seven 9/16 inch x 6-3/4 inch U-bolts, quantity one 9/16 inch x 7-3/4 inch U-bolt, washers, and nuts.

Buy
Quantity
Part Number
Description
Price
In Stock
(Click to Enlarge & Close)
287-35A
40 SERIES SOR UBOLT KIT -
Fits 1961-7/80 FJ40 & BJ40-total of eight Cad plated U-bolts, nuts, and washers-Kit contains quantity one 9/16 inch x 7-3/4 inch U-Bolt, and quantity seven 9/16 inch x 6 3/4 inch U-Bolts.
On Sale - Everyone gets the Discounted Price on this part.
 WARNING: Cancer and Reproductive Harm — www.p65warnings.ca.gov
70.00
287-35B
40 SERIES SOR U-
Bolt Kit - 8/80-1984 FJ40 & BJ40-total of eight Cad plated U-bolts, nuts, and washers-Kit contains quantity one 9/16 inch x 9 inch U-Bolt, and quantity seven 9/16 inch x 6 3/4 inch U-Bolts.
On Sale - Everyone gets the Discounted Price on this part.
 WARNING: Cancer and Reproductive Harm — www.p65warnings.ca.gov
70.00

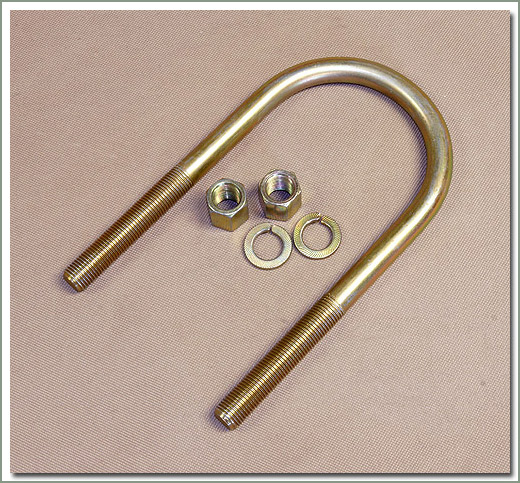

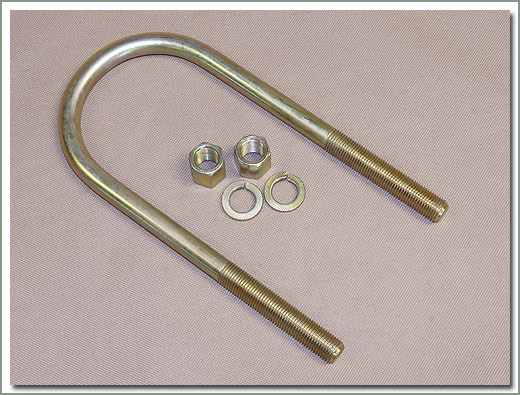

U-Bolts

U-Bolts come with installation hardware in the size you need for your application. Sold each.

Buy
Quantity
Part Number
Description
Price
In Stock
(Click to Enlarge & Close)
287-31A
40 SERIES FRONT SQUARE U BOLT -
Fits 8/80-1984 40 Series - 9/16 inch x 9 inch - Cad plated - Comes with nut and washer - Sold each
Club Price with 15% Discount is $ 16.99 Click here for info about joining Club SOR
 WARNING: Cancer and Reproductive Harm — www.p65warnings.ca.gov
19.99
287-32
16.99
287-33
19.99
287-34A
12.99
287-34B
19.99
Caster Spring Shims

When a vehicle is lifted using an extended shackles, the steering caster angle changes from the stock -1 deg. angle. This creates undue wear on steering components (Knuckle Bearings, Tie Rod Ends, Steering Box). You may also notice your vehicle wander or follow grooves in the road (under inflated tires and other worn steering components will also cause wandering). This problem can be corrected by using Caster Spring Shims. In vehicles with V-8 and or automatic transmission conversions that require the rear drive shaft to be shortened, Caster Spring Shims can help relieve stress on U-joints by rotating the rear pumpkin up. Sold in pairs. If your suspension modification requires the use of spring shims, be sure to purchase leaf centering pins with extended heads to compensate for the additional space added between the spring and spring perch on the axle housing. See part number #287-36.

Caster Spring Shims rotate the axle back to a stock tolerance:
Shackle
Shim
1" - 1 1/2" longer than stock
2.5 degree
2" - 2 1/2" longer than stock
4.0 degree
3" & longer
6.0 degree
Highslide JS
This image shows the stock
position of the axle housing.
Highslide JS
When you raise a vehicle by adding longer shackles, the axle housing rotates downward changing the angle of the differential and steering components. Using the proper shim rotates the axle
and steering components back to the correct position.
Highslide JS
In the rear of the vehicle, extended shackles increase the operating angle of universal joints of the driveshaft. Use spring shims on rear leaf springs to rotate the front of the differential up and alleviate u-joint binding.

If your suspension modification requires the use of spring shims, be sure to purchase leaf centering pins with extended heads to compensate for the additional space added between the spring and spring perch on the axle housing. See part number #287-36.
Buy
Quantity
Part Number
Description
Price
In Stock
(Click to Enlarge & Close)
287-82
2.5 DEGREE CASTER SPRING SHIM-
Sold in pairs. Does not fit with stock length center pins. See part number 287-36, order seperately if needed.
Club Price with 15% Discount is $ 16.14 Click here for info about joining Club SOR
 WARNING: Cancer and Reproductive Harm — www.p65warnings.ca.gov
18.99
287-84
4.0 DEGREE CASTER SPRING SHIM-
Sold in pairs. Does not fit with stock length center pins. See part number 287-36, order seperately if needed..
Club Price with 15% Discount is $ 27.20 Click here for info about joining Club SOR
 WARNING: Cancer and Reproductive Harm — www.p65warnings.ca.gov
32.00
287-85
6.0 DEGREE CASTER SPRING SHIM-
Sold in pairs. Does not fit with stock length center pins. See part number 287-36, order seperately if needed.
Club Price with 15% Discount is $ 31.15 Click here for info about joining Club SOR
 WARNING: Cancer and Reproductive Harm — www.p65warnings.ca.gov
36.65
Leaf Spring Centering Pins

When using stock leaf springs, it's important and recommended that you change the Leaf Spring Centering Pin to one that has a longer head. Doing this will compensate for the additional thickness of the shim and limit the possibility of slippage. Sold in pairs.

Buy
Quantity
Part Number
Description
Price
In Stock
(Click to Enlarge & Close)
287-36A
FJ40 LEAF SPRING CENTERING PIN-
Fits 1958-8/78 FJ40 Front & Rear-Sold in pairs - See page 287-82,84 & 85 for Caster Spring shims
Club Price with 15% Discount is $ 15.30 Click here for info about joining Club SOR
 WARNING: Cancer and Reproductive Harm — www.p65warnings.ca.gov
18.00
287-36B
FJ40 LEAF SPRING CENTERING PIN-
Fits 8/78-1984 FJ40 Front & Rear-Sold in pairs - See page 287-82,84 & 85 for Caster Spring shims
Club Price with 15% Discount is $ 11.94 Click here for info about joining Club SOR
 WARNING: Cancer and Reproductive Harm — www.p65warnings.ca.gov
14.05
Urethane Bumpstops

For those of you that have lifted vehicles or spring over vehicles with the need for longer axle bumpstops, Specter has them for you. We also know many of you out there build custom creations, so we carry an assortment of different sized bumpstops for all your needs. We even carry an adjustable bumpstop that adjusts from 1 inch - 2 1/2 inches, see #287-17. Available in black. Sold in pairs.

Buy
Quantity
Part Number
Description
Price
In Stock
(Click to Enlarge & Close)
287-15
4 1/2 INCH BUMP STOPS -**Special Order - NO Return
Black Urethane-4 1/2 inches tall-Sold in pairs.
Club Price with 15% Discount is $ 65.45 Click here for info about joining Club SOR
Special Order - NO Return
 WARNING: Cancer and Reproductive Harm — www.p65warnings.ca.gov
77.00
287-16
2 1/2 INCH BUMP STOPS -**Special Order - NO Return
Black Urethane-2 1/2 inches tall-Sold in pairs.
Club Price with 15% Discount is $ 42.50 Click here for info about joining Club SOR
Special Order - NO Return
 WARNING: Cancer and Reproductive Harm — www.p65warnings.ca.gov
50.00
287-17
ADJUSTABLE BUMP STOPS -**Special Order - NO Return
Black Urethane-Adjusts from 1 inch to 2 1/2 inches tall-Sold in pairs.
On Sale - Everyone gets the Discounted Price on this part.
Special Order - NO Return
 WARNING: Cancer and Reproductive Harm — www.p65warnings.ca.gov
19.99
287-18
BULLET BUMP STOPS -**Special Order - NO Return
Black Urethane-1 9/16 inches tall-Sold in pairs.
Club Price with 15% Discount is $ 11.90 Click here for info about joining Club SOR
Special Order - NO Return
 WARNING: Cancer and Reproductive Harm — www.p65warnings.ca.gov
14.00
287-19
FLAT BUMP STOPS -**Special Order - NO Return
Black Urethane-11/16 inches tall-Sold in pairs.
Club Price with 15% Discount is $ 12.75 Click here for info about joining Club SOR
Special Order - NO Return
 WARNING: Cancer and Reproductive Harm — www.p65warnings.ca.gov
15.00
Heavy Duty Spring Perches

Heavy Duty Spring Perches are made from 1/4 inch thick steel.

Buy
Quantity
Part Number
Description
Price
In Stock
(Click to Enlarge & Close)
287-14
HEAVY DUTY SPRING PERCH-
3 inches x 5 inches long-Sold in pairs
On Sale - Everyone gets the Discounted Price on this part.
 WARNING: Cancer and Reproductive Harm — www.p65warnings.ca.gov
50.00
<< Top of Page >>
Specter Off-Road, Inc.

World's Largest Supplier of Land Cruiser Parts & Accessories. Providing Quality Parts Since 1983

Contact SOR
Store Hours: Monday-Friday 8:00AM-6PM PST, Closed Saturday & Sunday

Phone: (818) 882-1238, Fax: (818) 882-7144, Email: sor@sor.com

Mailing Address: 21600 Nordhoff St. Chatsworth, California 91311 USA
Customer Entrance: 21601 Osborne St. (We're a city block long)

The History of Specter Off-Road, Inc.
Other Land Cruiser parts outfits may claim they're the oldest. ...in fact, we are... Our lineage transcends even our oldest competitor. Ourstaff possesses the combined experience of well over 100 years in the Land Cruiser Parts industry. Specter Off-Road boasts true Land Cruiser royalty. Read more...



California Proposition 65 WARNING


© Copyright 1996 - Specter Off-Road, Inc. All rights reserved. Specter Off-Road, Inc. is not affiliated with Toyota Motor Sales or Toyota Motor Corporation.
TT=00:00:00 519 54.227.31.145
X
This website uses Cookies to enhance user experience. Specter Off-Road does not use cookies to track personal information. Read our complete cookie policy here.
